16mm Solar Cable
Solar Cable Applications
16mm solar cables are ideal for various applications within solar energy systems:
-
Cable Runs Between Solar Modules: These cables connect individual solar panels together in strings.
-
Extension Cable Between String Inverters: They can be used to extend the reach from the molded strings to the central DC/AC inverter, accommodating for larger installations.
Solar Cable Standard
16mm solar cable is a versatile solution for transferring electrical energy in photovoltaic (PV) systems. They are well-suited for a variety of applications, including cabling between solar modules, and extension cables between molded strings and the DC/AC inverter in photovoltaic plants, solar parks, gable roof systems, and flat roof PV systems.
Here are some of the key features of 16mm solar cables:
-
Durability and Weather Resistance: 16mm solar cables are typically constructed with aluminum conductors and high-quality XLPE insulation. This combination withstands harsh outdoor conditions due to its high temperature resistance, UV resistance, and moisture resistance, ensuring reliable performance over time.
-
Efficient Power Transfer: 16mm solar cables are designed with a low resistance, which minimizes energy loss during transmission. They are rated for use at high voltage levels, which is necessary for efficient transfer of electrical energy in PV systems.
Standards
UL Listed
CE Marked
EN 50618
TUV Approved
Rated Voltage
The rated voltage of a solar cable refers to the maximum voltage it can safely handle. The higher the voltage rating, the thicker the cable insulation will need to be.
Conductor
The conductor of a solar cable is the part that carries electricity. Solar cables typically use tinned copper conductors because tinning helps prevent corrosion.
Jacket
The jacket of a solar cable is the outer layer that protects the conductor from moisture, sunlight, and abrasion. Solar cable jackets are typically made from cross-linked polyethylene (XLPE)
Durability
Solar cables are designed to withstand harsh outdoor environments, including exposure to sunlight, rain, snow, and extreme temperatures.
Temperature
Solar cables are rated for a certain temperature range. The maximum temperature rating of a solar cable is the highest temperature it can safely operate at. Common temperature ratings for solar cables include -40°C to +90°C.
Related Products
TUV Solar Cable
TUV solar cable is a type of solar cable that has been certified by TÜV Rheinland, a German technical inspection association.

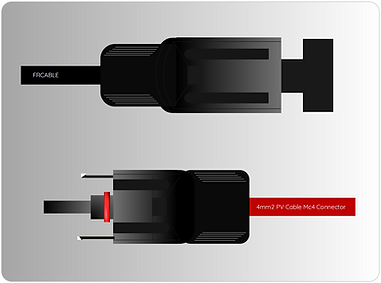

MC4 Connectors
A type of electrical connector that is commonly used in solar PV systems. MC4 connectors are weatherproof and easy to use.
4mm Twin Solar Cables
Increase your solar system's efficiency with these 4mm twin core solar cables Designed for parallel solar panel connection
FAQs
Q: What is a Solar Cable 16mm2 used for?
A: This type of cable is used to connect solar panels to inverters and other electrical components in a photovoltaic (PV) system.
Q: How is a Solar Cable 16mm2 different from other electrical cables?
A: It is specifically designed for use in PV systems and can withstand high temperatures and harsh outdoor conditions. It is also resistant to UV radiation and moisture.
Q: Is Solar Cable 16mm2 safe to use?
A: Yes, it meets all relevant industry standards for electrical performance, safety, and durability.
Q: Can Solar Cable 16mm2 be used indoors and outdoors?
A: It is primarily designed for outdoor use, but it can also be used indoors in some applications.
Q: How long does Solar Cable 16mm2 last?
A: The service life of the cable will depend on various factors, including installation and maintenance. With proper care, it can last for many years.
